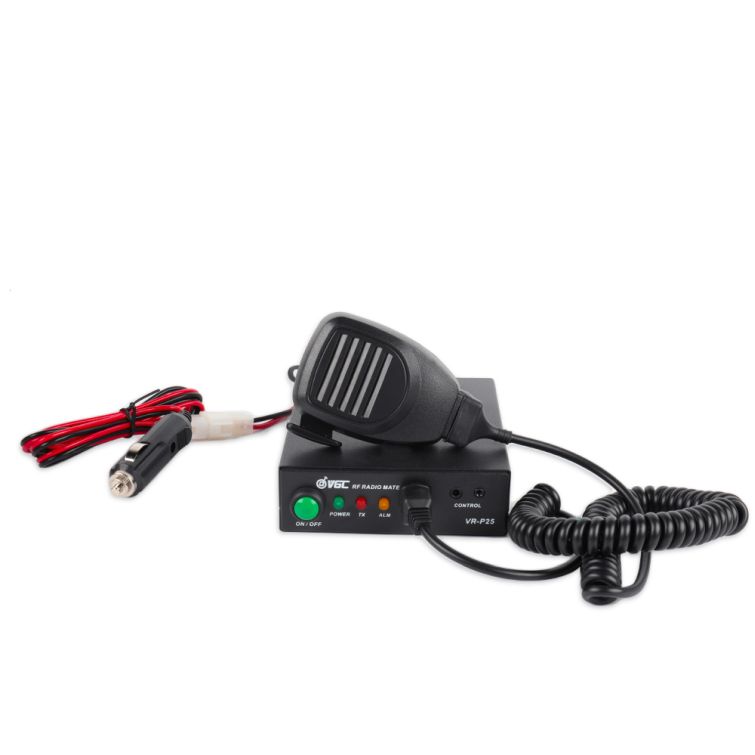

VGC VR-P25UD Amplifier for UHF 400-470 20-40W Output 2-6W Input
Analog DMR Modes Walkie Talkie Two way Radio
Bullet point:
▶ VR-P25UD is a lightweight portable handheld RF amplifier. With the
preamplifier you can easily extend the communication range of the handheld
radio.
▶ Use the preamp to create: a mobile device with a vehicle-mounted
antenna, a high-performance field radio with a field-installed antenna, a radio
with a base station on a mast. Your handheld radio connects in seconds and can
just as easily be disconnected and taken along the way.
▶ High output power up to 40 watts: with an input power of 2-6 watts, up
to 40 watts of output power can be achieved.
▶ Suitable for FDMA mode (C4FM, D-Star, NXDN, IDAS, dPMR, P25, MPT1327,
etc). Supports analogue handheld radios, e.g. Baofeng, Radioddity, Kenwood,
Yaesu, ICOM, Motorola analog radios.
▶ Certifications: All VGC amplifiers have been certified by CE, FCC. FCC
ID: ZVM-VR-P25U. CE ID: MOST18EE040578
▶ VR-P25U is a lightweight portable handheld RF amplifier.
Features:
▶ DMR and P25 Phase 2 modes
▶ Automatic switching
▶ VR-P25UD is suitable for FDMA mode (C4FM,
D-Star, NXDN, IDAS, dPMR, P25, MPT1327, etc.)
▶ High output power up to 40 watts with an
input power of a handheld radio of 2-6 watts can be achieved up to 40 watts
output power.
▶ UHF band: The amplifier VR-P25U / UD can
support UHF (400-470MHz)
▶ small design at a size of 35 * 115 * 135cm
it is particularly suitable for outdoor use such as Fielddays or for mounting
in the car
▶ Certifications: All VGC amplifiers have been
certified by CE, FCC.
▶ Multi-functional: Includes voltage
stabilizer, overheating protection, RF sensing, auto power off, harmonic
filters.
▶ Integrated speakers and microphone connection

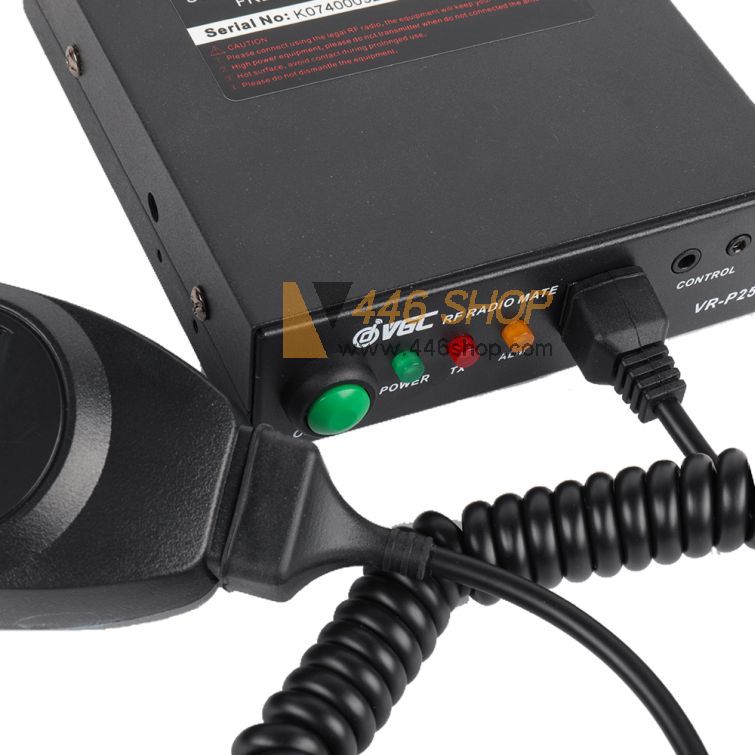

▶ Status display about the current operating
state

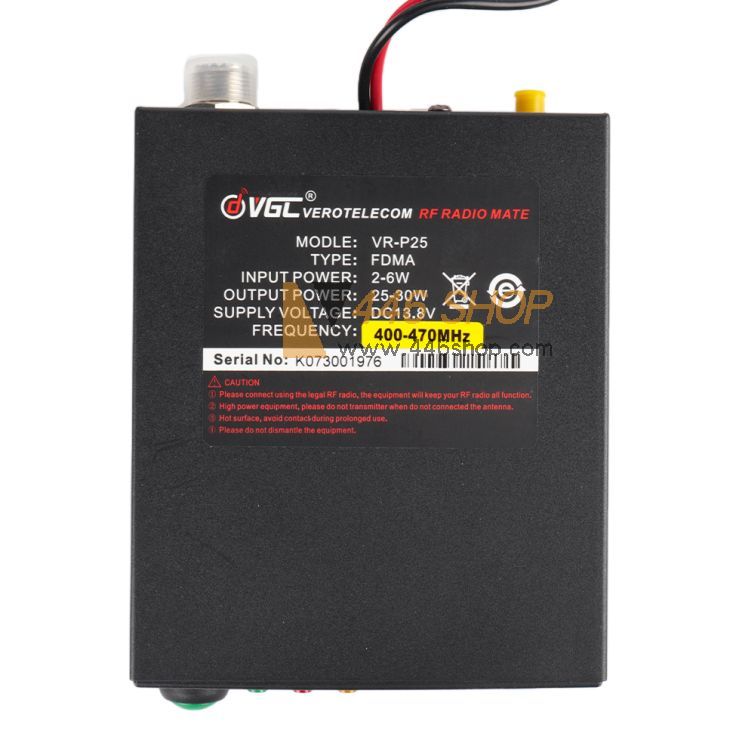

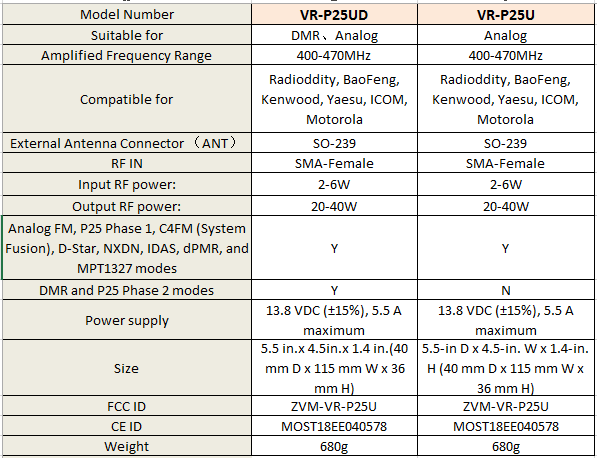

Specifications:
Frequency range: 400-470MHz
Power supply: 13.8 VDC (± 15%), 5.5 A
maximum
Input RF power: 2 - 6W (± 10%)
Output RF power: 20 - 40W
Size: 5.5 in D x 4.5 in. W x 1.4 in. H (135
mm D x 115 mm W x 36 mm H)
Dead weight: 1.5 lbs. (680 g)
Three Primary Modes of Amplfication:

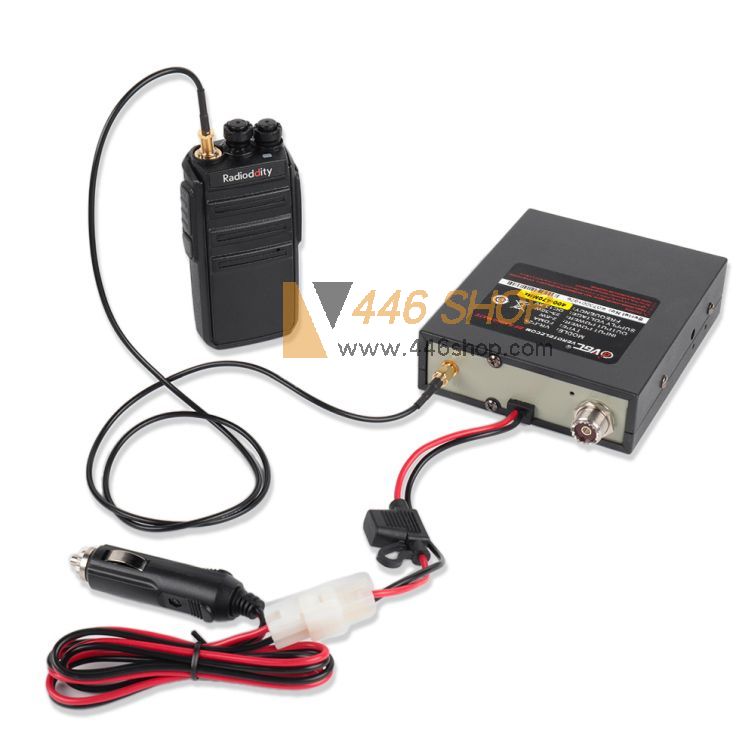

Radio Controlled

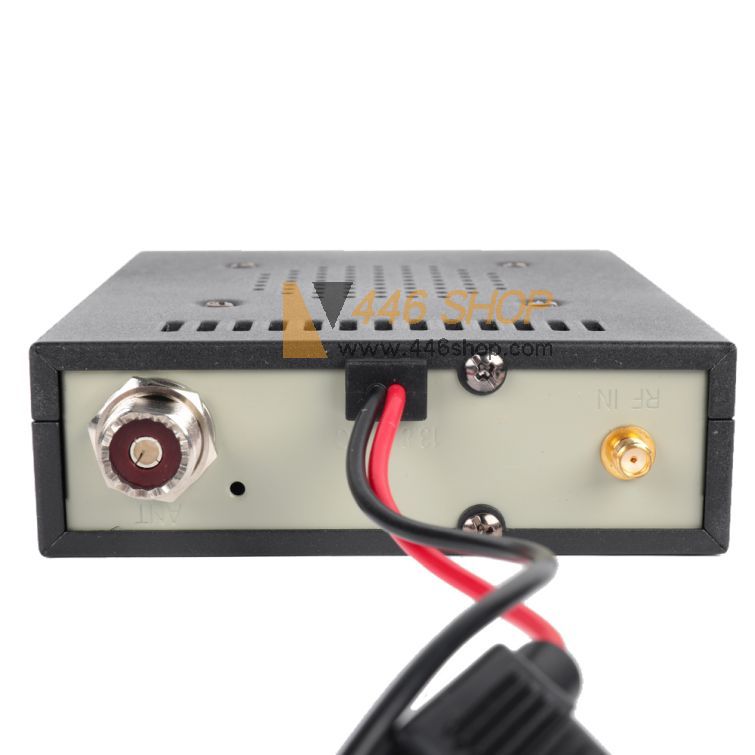

Connect to the antenna output of the
handheld transceiver to the RF-IN connector on the rear panel of the amplifier
with the Radio to Amplifier RF cable. Transmit and receive right on the
Handheld radio - while your output signal is amplified
Accessory Controlled
Connect to the antenna output of the
handheld transceiver to the RF-IN connector on the rear panel of the amplifier
with the Radio to Amplifier RF cable. Connect a speaker microphone, headset, or
compatible accessory to the radio. Transmit and receive right on the accessory
connected to the Handheld radio - while your output signal is amplified.
Amplifier Controlled

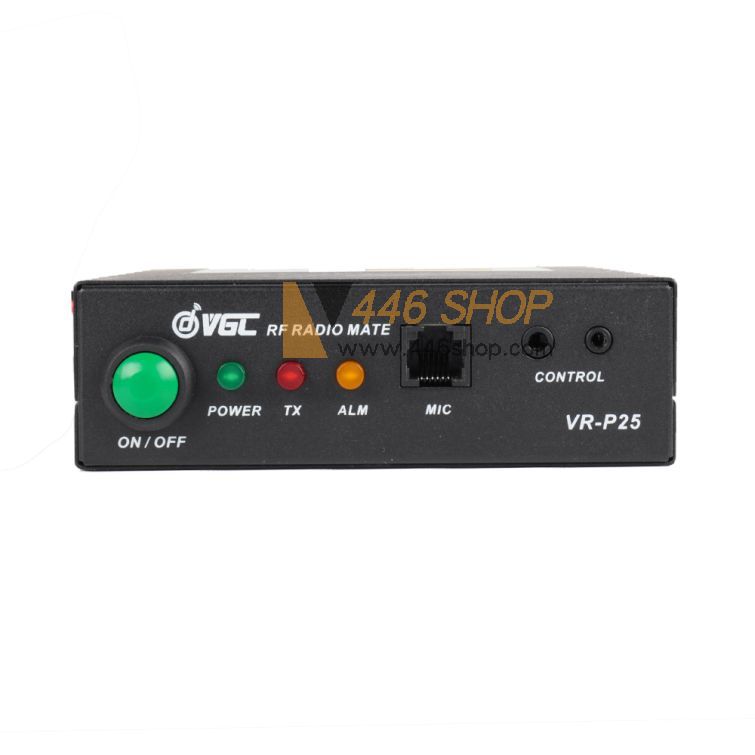

Connect the speaker microphone to the MIC
jack on the front panel of the amplifier. Connect to the antenna output of the
handheld transceiver to the RF IN connector on the rear panel of the amplifier
with the Radio toAmplifier RF cable. Connect the accessory port of your radio
to the Control jack on the front panel of the amplifier using the Amplifier
Control Cable. Transmit and receive using the speaker microphone on the
amplifier while incoming audio is relayed through the loud amplifier speaker.

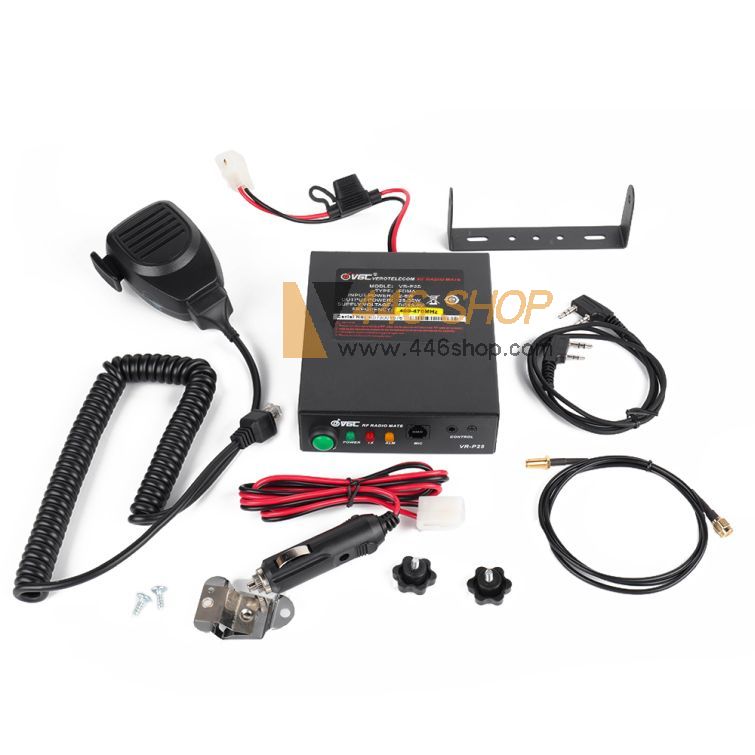

Package Contain:
1 x VGC VR-P25U amplifier
1 x Speaker microphone
1 x SMA female cable
1 x Power Cable
1 x Bracket
1 x Remote control cable (standard K1)
1 x Screw sets
1 x Manual
|
