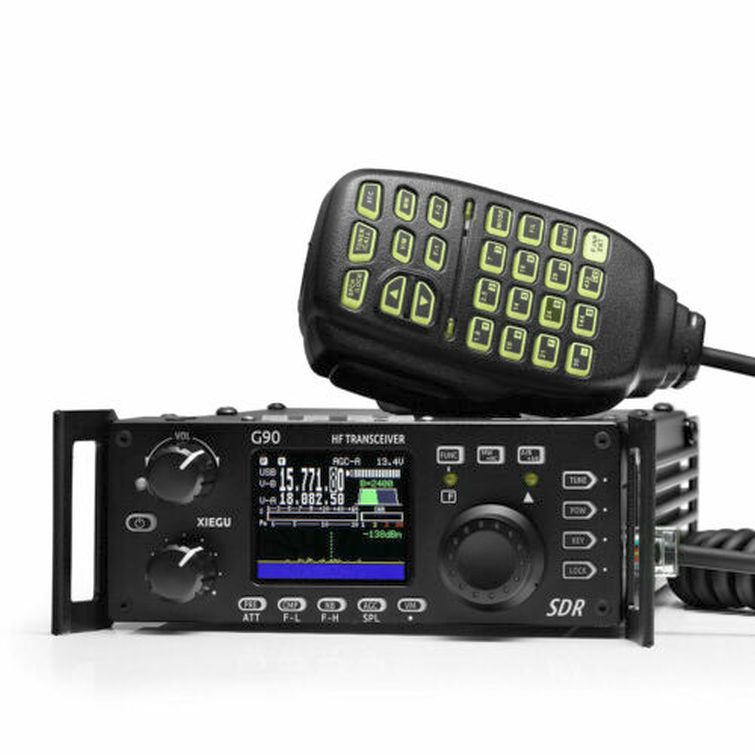

XIEGU G90 Radio QRP HF ​Transceiver ​SSB CW AM FM 0.5-30MHz SDR Structure
Price:

XIEGU G1M HF Quad Band Portable SDR Transceiver QRP SSB CW AW 0.5-30MHz Mobile Radio
Price:

Xiegu XPA125 HF Ham Two Way Radio Walkie Talkie Power Amplifier 125W 39dB QRP ALC LC Antenna Tuner LPF band ATU PA Function
Price:

More>>

  Home >> Radio Accessory >> Power Amplifier >> Xiegu >> XPA125B 100W HF Power Amplifier Auto tuner ATU For X5105 X108G G1M G90

XPA125B 100W HF Power Amplifier Auto tuner ATU For X5105 X108G G1M G90 [Comments(0)|Leave your Comment]
Brand:Xiegu
Item#:0814402310
Score:5  (Score change Discount Voucher)
Shipping Fee:$35
List Price:
Price:
You Save:
Qty:

Prev:Anytone AT-779UV Mini Mobile Radio USB Programming Cable

Next:Motorola Acoustic Tube Headset for MTX960 MTX9000 XTS5000 Walkie Talkie

Detail

Related

Comment

Payment

Shipping

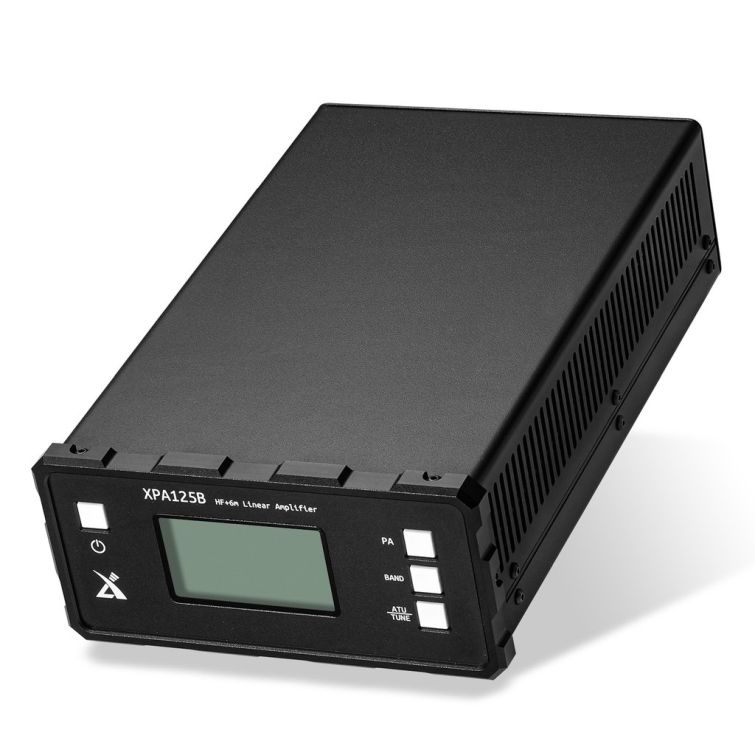

Xiegu XPA125B 100W HF Power Amplifier + Auto tuner ATU For X5105 X108G G1M G90

XIEGU XPA125B | 100W POWER AMPLIFIER | AUTO ANTENNA TUNER | LARGE DISPLAY SCREEN


The Xiegu XPA125B (new version) is a 100-125 watt solid-state linear power amplifier for frequencies from 0.5 to 30Mhz and 50 to 54Mhz, with an integrated antenna tuner (1.8 to 30Mhz) and a big and bright display for monitoring the amplifier status. It is equipped with protections: temperature, overcurrent, detection of input and output. It's perfect for your QRP radio or low power SDR transceiver.

The XPA125B HF amplifier can be used with any QRP HF transceiver and is compatible with the Xiegu G90, X108G and X5105 and it's with the automatic bandwidth and output power control function (ALC).

The large backlit 2.7 inch LCD display screen shows input/output power, SWR, Voltage, Current, Temperature, amplifier status as well as warning messages making the operation of this modern amplifier simple and also user friendly. The serial connection allows you to hook it up the computer to update the firmware.

Specifications:
Operating frequency: 0.5~54MHz
Input power: ≤5W
Maximum output RF power: 1.8-30MHz ≥110W | 50-54MHz ≥ 90W
Maximum Ambient Operation Temp: 131 Fahrenheit(55 Celsius)
Gain: 13 dB (+/-2dB)
Spurious Suppression: >50 dB
Supply Voltage: 12-15 Volts DC
Transmit Current Draw: @ max output 30 Amps
Current parameters: Standby 260mA @Max Launch: 30A@Max
Receive Current Draw: @ max 700 mA
ATU Frequency Range: 1.8-30 MHz & 50-54 MHz
ATU Tuning Range: 14-500 Ohms
ATU maximum tuning range: 14~500Ω
Working voltage: 12V~14.5V DC
Machine size: 260*150*100mm | 10.24*6.3*2.56in [Excluding knobs, handles, etc.]
Weight:1.6kg | 3.53lb


Compatible with
Xiegu X5105, Xiegu G90
Yaesu FT-817, Yaesu FT-818

Recommended Radio & Accessories
Xiegu CE-19 Expansion Port for connection with a Xiegu G90 or X5105 Transceiver
Xiegu G90 radio
Xiegu X5105 HF transceiver
Xiegu G1M radio

What's in the box?
1 x Xiegu XPA125B 100W Linear Power Amplifier
1 x Control Cable for Xiegu Transceivers
1 x DC Power Cable
1 x USB Cable for PC Connection
1 x User Manual
