  Home >> Brand of Radio >> KENWOOD >> KENWOOD >> Kenwood TH-22AT TH-42AT FM Handheld Radio UHF VHF Transceiver Two Way Radio

Kenwood TH-22AT TH-42AT FM Handheld Radio UHF VHF Transceiver Two Way Radio [Comments(0)|Leave your Comment]
Brand:KENWOOD
Item#:0105010000
Score:0  (Score change Discount Voucher)
Shipping Fee:$18
List Price:
Price:
You Save:
Frequency Range:
Dimensions:
Qty:

Prev:Baofeng GT-5TP Triple Output Power 1/4/8W Dual-Band Dual PTT Handheld Amateur Walkie Talkie Ham Radio Two-Way Transceiver

Next:Motorola EM200 Car radio long distance mobile radio VHF UHF 45W Transceiver

Detail

Related

Comment

Payment

Shipping

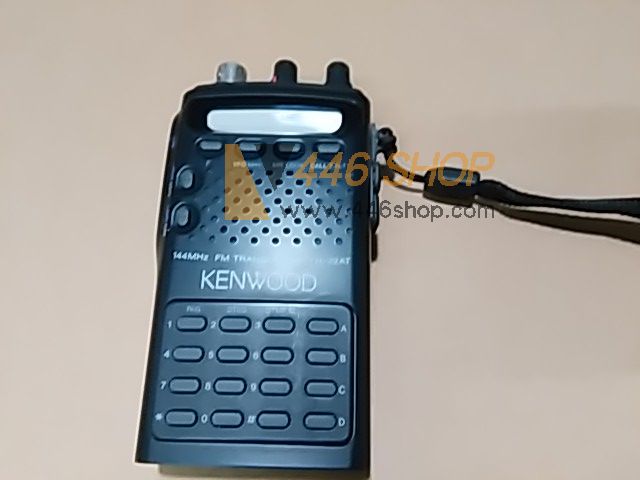

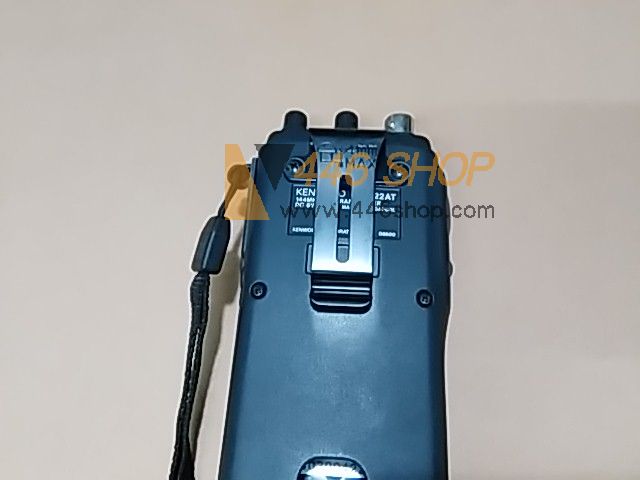

Kenwood TH-22AT TH-42AT FM Handheld Radio UHF VHF Transceiver Two Way Radio



Features at a glance:

2 m (TH-22A/AT/E) or 70 cm (TH-42A/AT/E) single-band operation

MOS FET power module

40 memory channels in EEPROM (plus 1 call channel)

Multiple scan functions (VFO, call & memory)

Dual scan stop modes (Carrier Operated & Timer Operated)



TH-22AT/TH-42ATin detail:

MOS FET power module
By adopting an FET power module, we have made it possible to generate high output (over 5 watts with a 9.6 V battery) for longer hours without bulky hardware. A 6 V battery pack, which provides 3 watts (TH-22A/AT/E) or 2.5 watts (TH-42A/AT/E), is supplied. The optional PB-30 4.8 V battery reduces the size to an overall height of 110 mm.

Optional DTMF keypad (supplied with TH-22AT/42AT)
The DTMF memory function allows storage of up to 5 different 15-digit (maximum) DTMF codes for auto-dial and autopatch use. And with DTMF transmit hold, you can send consecutive numbers more easily. Also, the keypad enables direct frequency entry (in VFO mode) and direct recall of memory channels (in MR mode).

DTSS (Dual-Tone Squelch System) and pager
DTSS opens the squelch to allow DTMF access to the receiver, while the pager will alert the operator to an incoming call (optional DTP-2 required).

User-friendly operation
In addition to the convenient menu system, operation of this transceiver has been made simpler with 6 keys on the front (VFO, MR, CALL, MHz(F), T/CT, and REV) and 3 on the side (PTT, LAMP and MONI).

40 multi-function memory channels plus 1 call channel
All 41 memory channels can independently store essential data -- transmit and receive frequencies, frequency step, tone (CTCSS) frequency, tone on/off, CTCSS on/off, DTSS code, DTSS on/off, shift, reverse on/off -- in non-volatile EEPROM, so there's no need for battery backup.

Powerful multi-scan function
You can choose VFO, call and memory scans (with programmable memory channel lock-out). Scan stop modes include CO (stops on a busy channel and resumes 2 seconds after the signal drops out), and TO (stops on a busy channel for 5 seconds, then resumes).

Tone alert with elapsed time indicator
To signal the presence of an incoming signal, this tone alert system will cause a distinct audio tone to be emitted from the transceiver for 10 seconds. A flashing bell provides a visual indication, and the time is also shown in the display.

Busy channel lock-out
This prevents transmission if a signal is detected on the chosen channel.

Selectable squelch configuration
Setting the squelch is easy, thanks to the provision of two controls (the encoder is temporarily switched to SQL use).



Other Features:

Key lock

Time-out timer (30, 60, 90, 180, 900 seconds)

Auto battery-saver circuit

LCD with 2 backlighting modes (on demand or continuous)

3-position RF output power control

Built-in CTCSS encoder and optional decoder

Auto power-off

Auto repeater offset (TH-22A/AT/E)

Battery voltage indicator

Programmable repeater offset (TH-22E/42E)

Dimensions (W x H x D)

56 x 116.5 x 24.5 mm (2.2 x 5.7 x 1.0 in.)

Please note that not all features and options may be available for the model sold in your region.
Operation of DTSS, Pager, DTMF, and CTCSS is subject to local regulations.



Each Set Package Contain:



Kenwood TH-22AT / TH-42AT

1× Li-ion Battery Pack

1× Belt Clip

1× User Manual

1× Desktop Charger

1× AC Adapter

1× PTT Earpiece



If bulk order, please contact Ms. Amy Huang:

Tel: 86(592)5995025

Fax: 86(592)3720556

WhatsApp: 86-13860123881

SKYPE: amy.446shop

Email: amy@446shop.com
