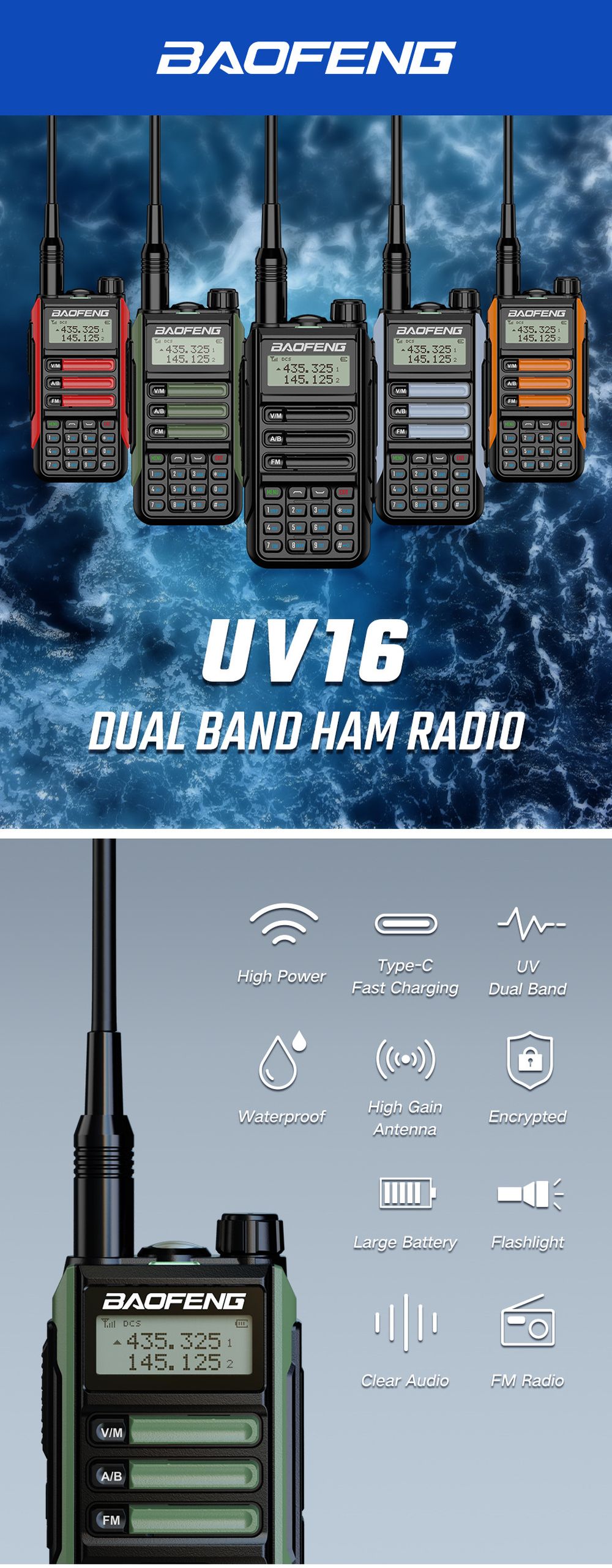

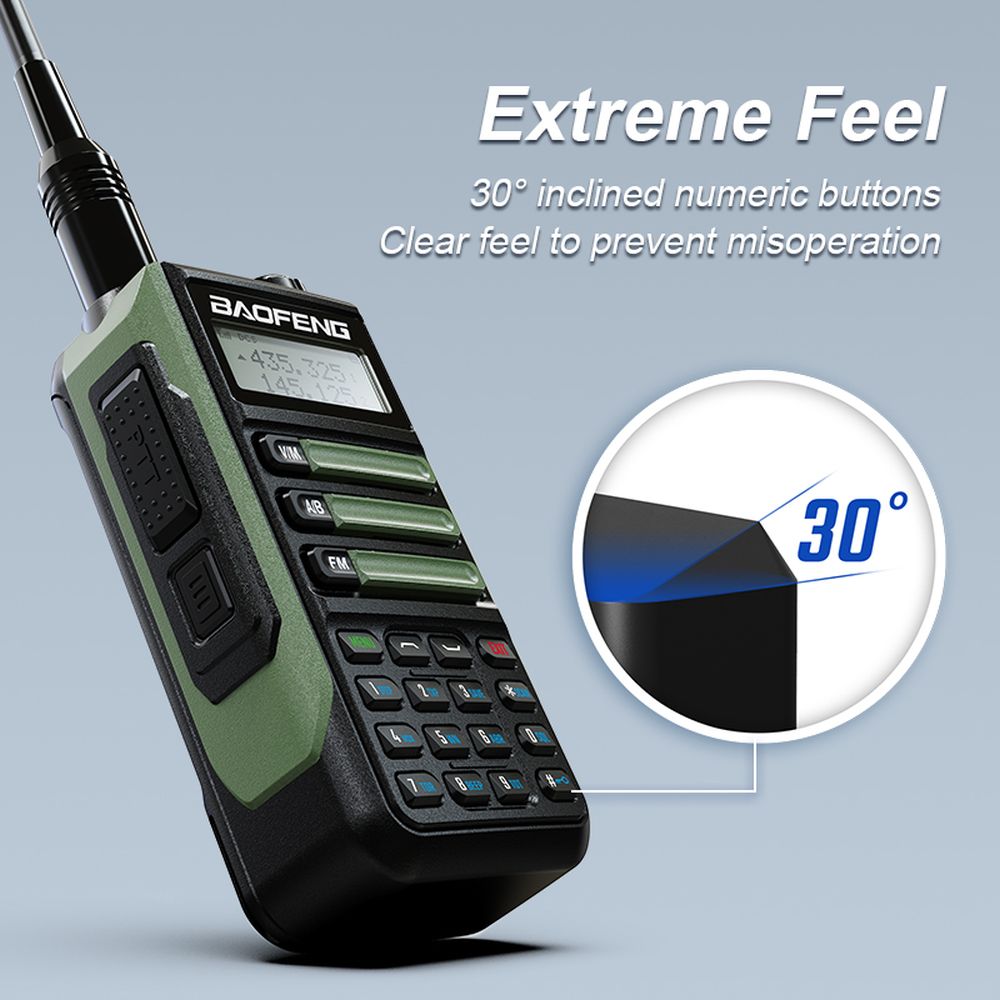

Baofeng UV-16 Long Range Walkie Talkie Handheld Two Way Radio

Baofeng Walkie Talkies Long Range Rechargeable Two Way Radios Support Type-C Cable Ham Radio with 5800mAh Li-ion Battery UV-16


- USB Direct Charging -

Dual Band VHF/UHF

Multi-Colors ( Tell us If You Need Other Color )

★USB Type-C Charging

USB charging is a trend for mobile devices as it has low requirements for power sources and

places. The UV-16 is USB Type-C rechargeable, for which you can easily charge it like a phone in your car, with a power bank or laptop. Portable for your go-kit.


★Dual Watch & Sync Switchable

For users who only want to monitor one channel but would like to see both the channel name and frequency information on the display, the Sync function will be very helpful.


★UHF VHF Scanner + 3 Scanning Modes

Channel Scanning: Scan through your preset scanning list.


Frequency Range Scanning: Set a frequency range in the menu and it will scan precisely within that range, even only 1MHz apart.


CTCSS/DCS Tone Scanning: Scan all CTCSS/DCS tones of the current frequency.


★PC & Manual Programmable

Apart from programming the radio via computer software, users can also use the keypad to program most settings in the menu, for example, adding/deleting a memory channel, adding/removing a channel from the scanning list, adjusting VOX/squelch/power save levels, etc.


Product Description:

All of our items are Brand New

Model

UV-16

Dual band /dual display / dual standby

A/B band independent operation(UV UU VV)

999 groups channels storage

Shortcut menu operation mode

Memory channels scan

Time/ Carrier / Search Operation

Emergency Alarm

Indicator and flashlight Flashing Together

Time-out Timer (TOT)

15-600/Stepping 15

Squelch Level(SQL)

0-9 Grade

PTT & ANIID

ON OFF/0-9;A-F

Voice companding

CTCSS/DCS

High/Low TX power selectable

Busy channel lock-out(BCLO)

DTMF ST function

DT+ANI/ANI-ST/DT-ST/OFF

Dual PTT

Yes


Wide/Narrow Band(25kHz/12.5kHz)

Yes


VOX function

Yes

OFF/1-10

1750HZ Tone

Yes


Busy lockout function

Yes


Scanning function

Yes


Monitor function

Yes


Time-out Timer (TOT) function

Yes


LCD display

Yes


Dual display

Yes


Dual Standby

Yes


Battery voltage display function

Yes


Channel name display and editing functions

Yes


Signal strength indicator

Yes


Keypad lock function

Yes


Built-in Led torch

Yes


FM radio

Yes

65-108MHZ(Reception)

Emergency alarm function

Yes


Low battery alarm

Yes


Power saving function

Yes


High/Low TX power selectable

Yes

5W

ROGER SET

Yes

FULL/MGS

Chinese and English voice prompt

Yes


Wire clone function

Yes


PC software programmable

Yes


General Specifications

Frequency stability

±2.5ppm

Frequency Step

2.5/5/6.25/10/12.5/20/25KHz

Antenna Impedance

50ohm

Working temperature

-20~+50°C

Rated Voltage

7.4V DC±10%

Output power

<= 5W

Battery type

Li-ion battery

Battery capacity

5800mAh

Headphone jack type

2 Pin Kenwood Plug

Antenna Type

SMA-(Male)

Mode Of Operation

Simplex Or Semi-duplex

Weight

130g(approximate)

Dimension(LXWXH)

115*60*36mm(without antenna)

Transmitter

Type Of Modulation

16køF3E / 11køF3E

Max frequency deviation

< 5kHz(Wide)/< 2.5kHz(Narrow)

Emissioncurrent

<= 1.5A(5W)

CTCSS / DCS

0.7±0.1kHz(Wide)/0.4±0.1kHz(Narrow)

Reception

Sensitivity

-122dBm(12dB SINAD)

Audio Power

1W

Intermediation Distortion

<10%

Inter modulation

>=65Db/>=60dB

Spurious response

65dB

Adjacent channel selectivity( wide/narrow)

<-65dB(Wide) <-60dB(Narrow)

Receiving Current

<=380mA

Features:

1) IP57 life waterproof (Splash waterproof protection).

2) LCD display screen.

3) 5W high power

4) DTMF coding.

5) U/V full band transceiver.

6) Quick menu operation mode.

7) Computer program.

8) Wired copy function.

9) Emergency alarm call function.

10) Wide / narrow band selection.

Package include:

1 X Baofeng UV-16 Transceiver

1 X Antenna

1 X Li-ion battery pack

1 X Belt clip

1 X The Sling

1 X Charger

1 X User's manual

(And other accessory depend on your choice in the link)
