  Home >> Brand of Radio >> QYT >> QYT >> QYT KT-UV980 Dual Band Mobile Radio UHF VHF 40W Repeater

QYT KT-UV980 Dual Band Mobile Radio UHF VHF 40W Repeater [Comments(0)|Leave your Comment]
Brand:QYT
Item#:0197420000
Score:1  (Score change Discount Voucher)
Shipping Fee:$38
List Price:
Price:
You Save:
Frequency Range:
Dimension:
Qty:

Prev:QYT KT8900 Mini Dual Band Mobile Radio KT-8900 Vehicle Mounted UHF VHF Transceiver

Next:TYT TH-UV8000D 10Watt Dual Band Handheld Walkie Talkie with Cross-band Function

Detail

Related

Comment

Payment

Shipping

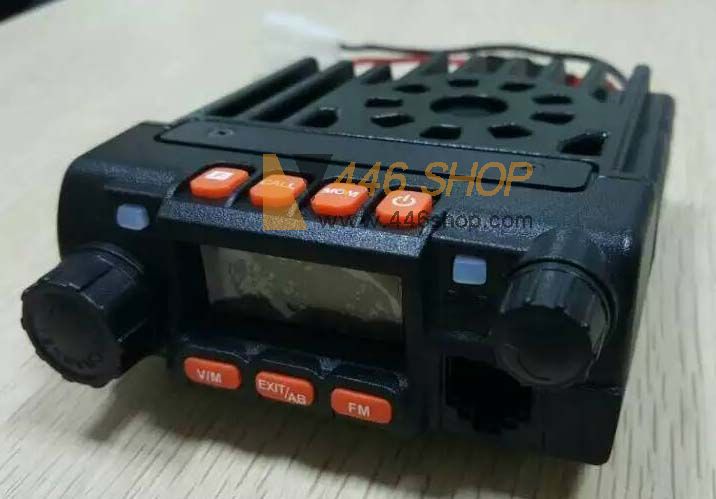

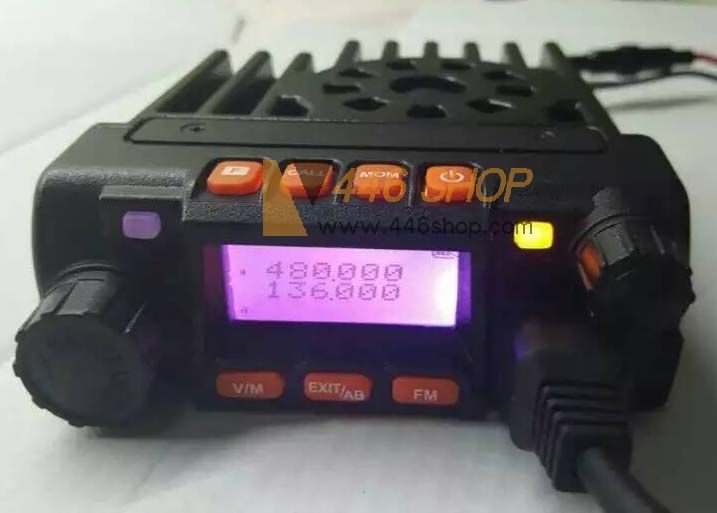

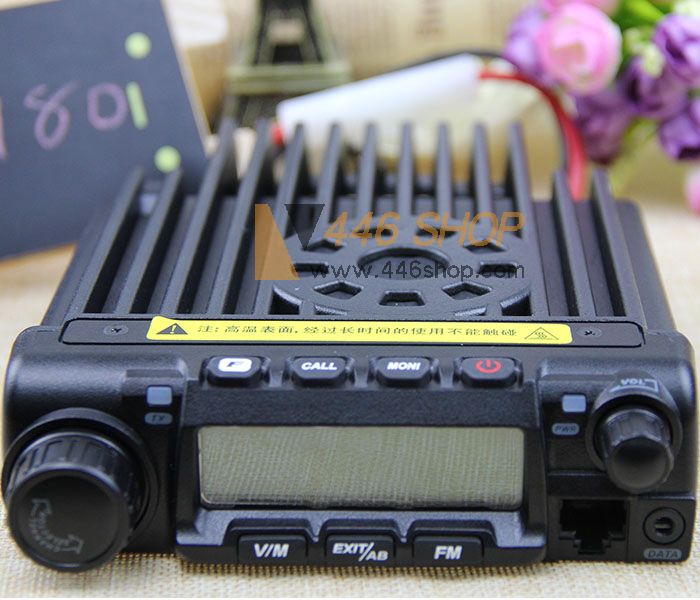

QYT KT-UV980 Dual Band UHF VHF Mobile Radio



Specifications:

Model: KT-UV980

This product has the function of the new development menu Personalized design operation, male it easy for you to use Exquisite volume and reasonable price will meet you requirements.



Function:

1. Dual Band Frequency waiting

2. Step Frequency 5/6.25/10/12.5/25KHz

3. 10 Level Squelch step

4. High/Low Transmitted Power

5. Voice Encryption

6. Time out Timer

7. Launch end early warm

8. Wide/Narrow switchable

9. Auto light

10. Voice to switch

11. Receiver retuned/ Receiver analog retuned

12. Launch digital retuned/ Launch simulation retuned

13. Lateral sound switch

14. Busy channel lock

15. Add Scan Channel

16. Priority Scan/Channel

17. Scan back way

18. Optional signaling

19. Horn loudspeaker

20. PPT launch

21. Sending additional

22. Issue informational

23. Alarm Mode

24. Alarm Channel

25. Ring time

26. Channel name edit

27. A/B Channel display mode

28. Key lock

29. Boot mode

30. Standby/Receiving/Transmit light choice

31. 200 Channel Memory

32. Erasure Channel

33. Frequency direction

34. Repeater activate/mode



EACH UNIT PACKAGE CONTAIN

1 x QYT KT-UV980

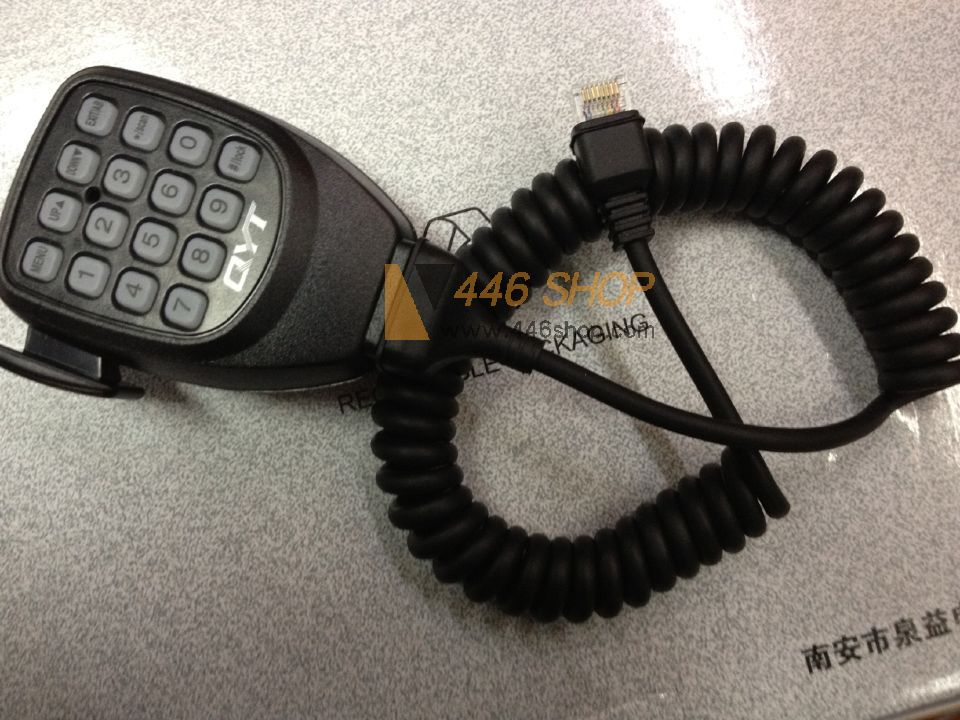

1 x Microphone

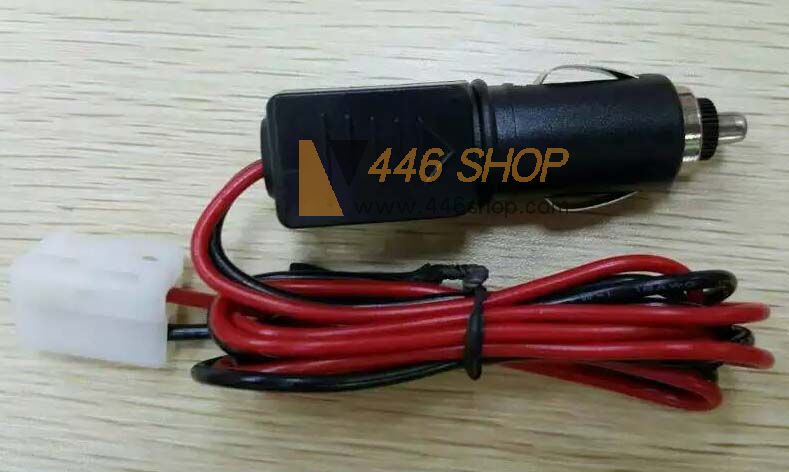

1 x Power Cable

1 x Fuse

1 x Mounting bracket

1 x Screw

1 x User"s Manual

1 x USB PROGRAMMING CABLE FOR QYT KT-UV980



Optional accessories:

Speaker Microphone (Click to buy.)

Car charger (Click to buy.)

PC Programming cable (Click to buy.)



Item number

KT-UV980

General

Frequency Range

VHF:136-174MHz  UHF:400-480MHz

Number of Channel

200

Channel Spacing

25KHz 20K 12.5

Phase lock step

5KHz6.25 KHz10 KHz12.5 KHz15 KHz25 KHz

Working Voltage

13.8V DC±15%

Squelch way

CTCSS/DCS/5Tone/2Tone/DTMF

Frequency Stability

±2.5ppm

Operating Temperature

-20~+60

Dimension(W x H x D)

145(W) x 47(H) x 190(D)mm

Weight

1.2kg















Receiver



Broadband

Narrow band

Sensitivity

≤ 0.25μV

≤ 0.35μV

Channel choice

≥70dB

≥60dB

Intermodulation

≥65dB

≥60dB

Spurious Rejection

≥70dB

≥70dB

Audio response

+1~ -3dB(0.3~3KHz)

+1~ -3dB(0.3~2.55KHz)

Signal to noise ratio

≥45dB

≥40dB

Audio distortion

≤5%

Audio output power

≥2W@10%





















Transmitter



Broadband

Narrow band

Output power

40W/10W(VHF)

30W/10W(UHF)

Modulation Mode

16KΦF3E

11KΦF3E

Channel Power

≥70dB

≥60B

Signal to noise ratio

≥40dB

≥36dB

Parasitic harmonic

≥60dB

≥60dB

Audio response

+1~ -3dB(0.3~3KHz)

+1~ -3dB(0.3~2.55KHz)

Audio distortion

≤5%
