Wouxun KG-UV9D Mate 10W Air Band Walkie Talkie​ Cross Band Repeater Two Way Radio [Comments(0)|Leave your Comment]
Brand:WOUXUN
Item#:0113112020
Score:1  (Score change Discount Voucher)
Shipping Fee:$25
List Price:
Price:
You Save:
Qty:

Prev:Recent RS-35ME Explosion-proof ​Float Vibration Draining IP67 Waterproof Radio

Next:Inrico T640A Android Walkie Talkie GPS 4G LTE Wifi Bluetooth Network Radio

Detail

Related

Comment

Payment

Shipping

Wouxun KG-UV9D Mate 10W Walkie Talkie 3200mAh 7 band Air Band Cross band Repeater Amateur Radio

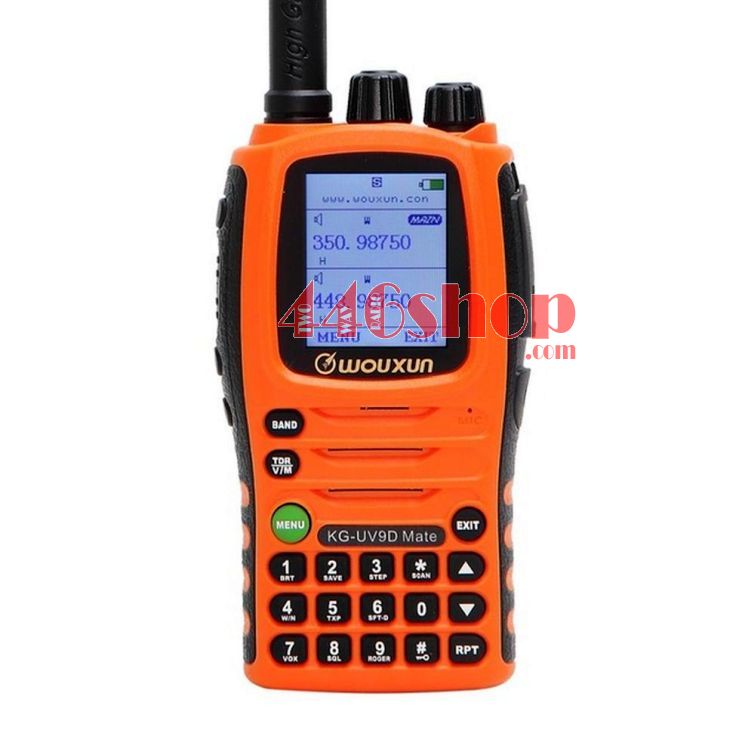

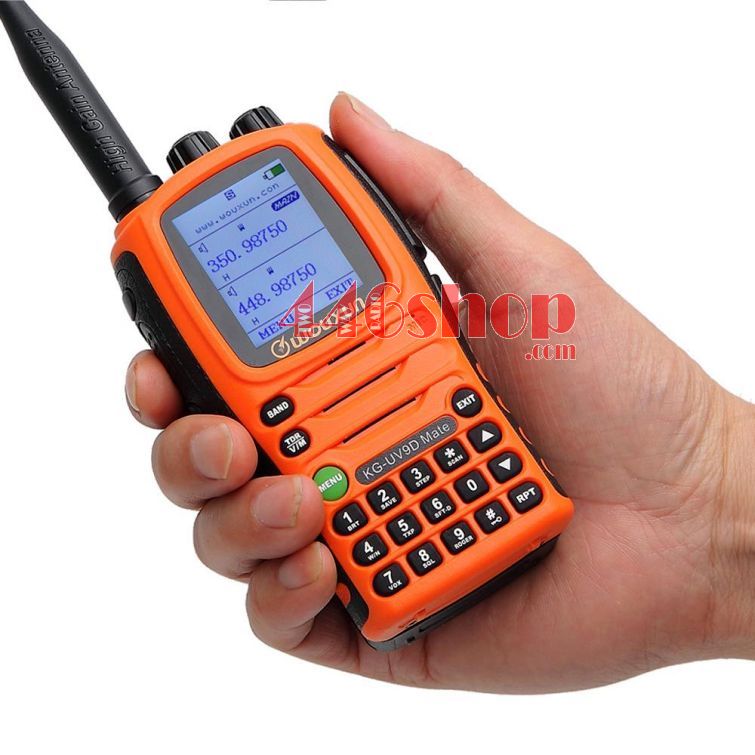

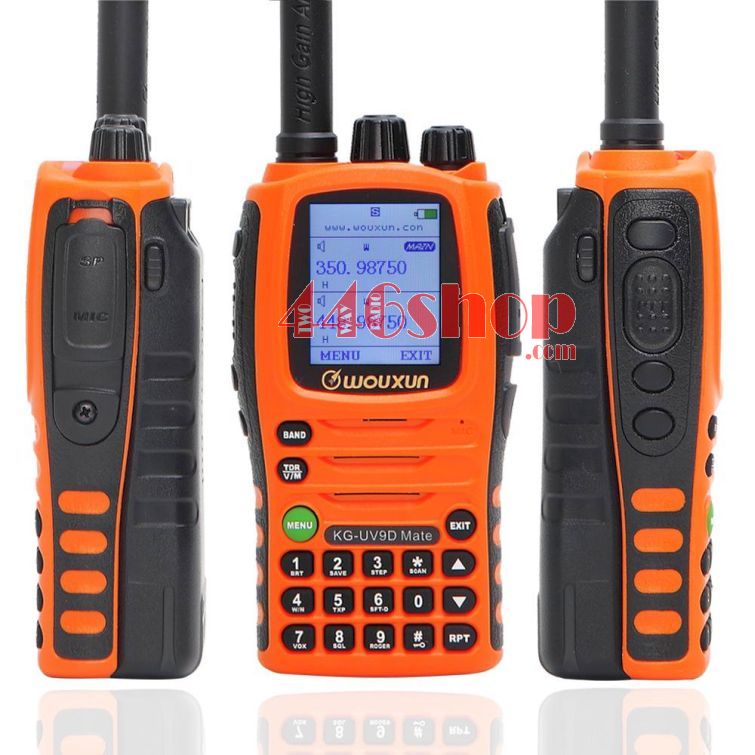

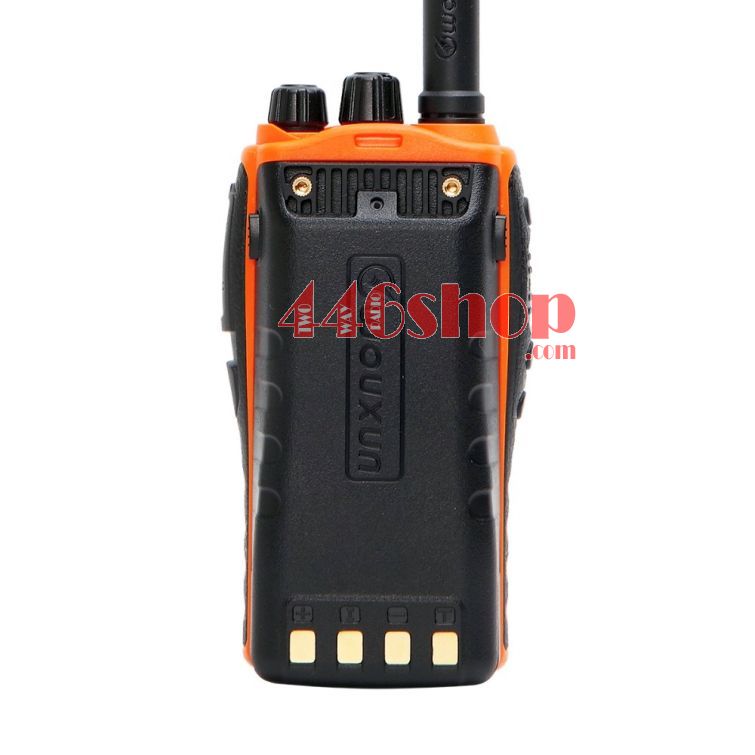

The Wouxun KG-UV9D Mate is Upgrade version KG-UV9D Plus, High Power 10Watt, With 3200mAh  Battery, First use of orange crust design, more fashionable and beautiful!  We believe this new design will give you a Best experience!

1.10W Powerful,3200mAh Li-ion Battery

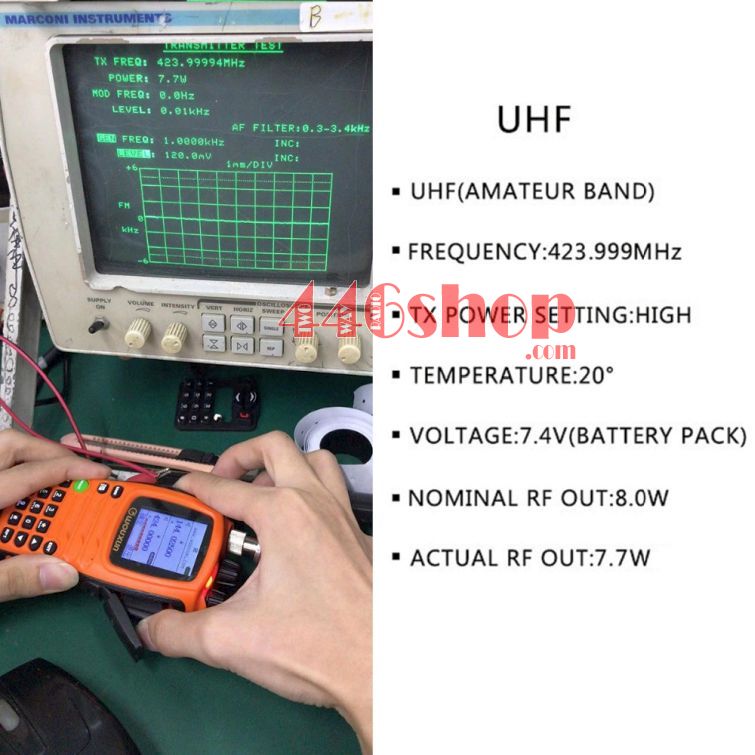

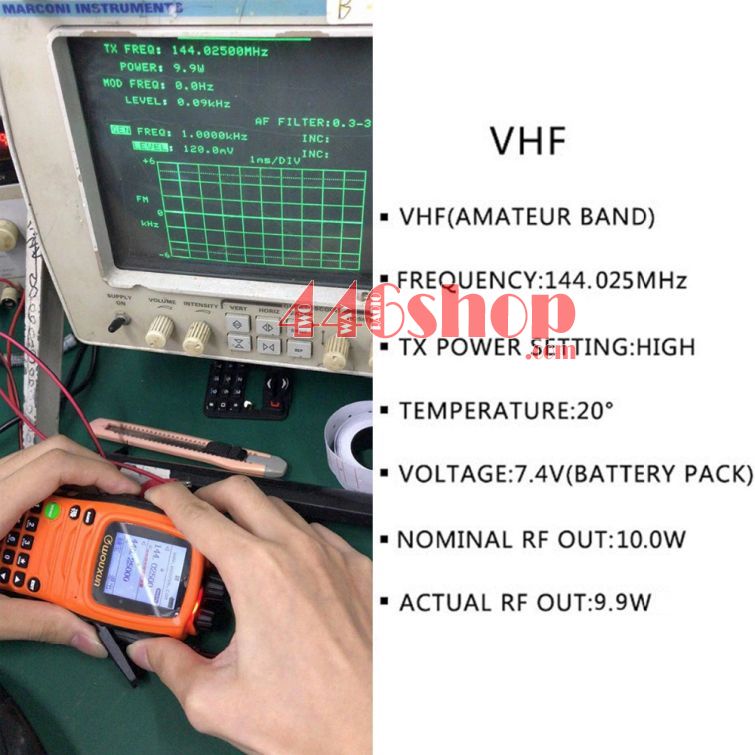

Output power: VHF: 10W, 5W,L: 1W;  UHF : H: 8W,5W,L:1W
3200mAh High Capacity battery

2.Dual Band , Cross Band Repeater , Large Color Screen

With two independent receivers for both UHF and VHF, you can listen to either the same or different bands simultaneously , large color screen can display more information

3.Seven Bands Reception and Dual Bands Transmission

Wider frequency ranges meet different demands. The frequency range is from 76MHz to 965MHz, including FM radio and Air band

4.Classic Circuit , Excellent Performance

Mature circuit design and high quality electronic components, after years of use can still maintain stable performance

5.Using High Quality Plastic and Rubber Material

High quality plastic can make the shell more robust and durable good rubber material can make the button has a good touch feel

Features:

-Frequency Range

TX:136-174MHz(FM) 400-512MHz(FM)

RX:108-136MHz (AM Band Receiving)

136-180MHz(FM)

230-250MHz(FM)

350-400MHz(FM)

400-512MHz(FM)

700-985MHz(FM)

-Twin Band Simultaneous Receiving (U-U,U-V,V-U,V-V)

-Separate Bands Duplex (U-V,V-U)

-DTMF Encoding/Decoding

-All Calls,Group Calls and Selective Calls

-Stun,Kill,Monitor and Inspection

-CTCSS/DCS Scan

-Programmable Non-Standard CTCSS/DCS

-Multi Scan Modes: Programmable Scanned Frequency Range (only available in Frequency Mode),Channel Groups Scan (only available in Channel Mode)

-Multi Functions Programmable for Side Keys, Programmable Transmission Function on Sub-Frequency(Side Key Function Programmable)

-English Voice Guide

-Priority Scan, Priority Channel Setting

-Twin Band Simultaneous Scan

-Multi Power Save Modes

-Auto Power-OFF Timer (APO)

-Three Output Power Levels:

High / Med / Low Power Settings (10W, 5W, 1W)

-Multi Single-Tone Pulse (1750Hz,2100Hz,1000Hz,1450Hz)

-Multi Keypad Lock Modes

-PTT ID

-Wide/Narrow Bandwidth Selection

-Backlight Brightness Selection

-Wide/Narrow Bandwidth Selection

-Backlight Brightness Selection


Specifications:

Intergration

Frequency Range

TX:136-174MHz(FM) 400-512MHz(FM)

RX:108-136MHz (AM Band Receiving)

136-180MHz(FM)

230-250MHz(FM)

350-400MHz(FM)

400-512MHz(FM)

700-985MHz(FM)

Step

2.5/5/6.25/10/12.5/25/30/50/100KHz

Channel Number

999

Work Mode

F2D/F3E

Operating Temperature

-20°c to 60°c

Antenna Resistance

50Ω

Voltage

7.4VDC

Weight

490g

Size

124.5×61.49×33.88(mm)

Transmitter

Wide Bandwidth

Narrow Bandwidth

Type of Modulation

16K F3E

11K F3E

Adjacent Channel Power

≥70dB

≥60dB

Spurious

≥60db

≥60dB

Audio Response

+1~3dB(0.3~3KHz)

+1~3dB(0.3~2.55KHz)

Max Frequency Deviation

±5KHz

±2.5KHz

Frequency Stability

±2.5ppm

Audio Distortion

≤5%

Ouput Power

H:10W,M:5W,L:1W

Receiving

Wide Bandwidth

Narrow Bandwidth

Adjacent Channel Selectivity

≤70dB

≤60dB

Inter Modulation

≤65dB

≤60dB

Spurious Response

≤70dB

≤70dB

Audio Response

+1~3dB(0.3~3KHz)

+1~3dB(0.3~2.55KHz)

Signal to Noise Ratio

≥45dB

≥40dB

Audio Distortion

≤5%

Audio Power

Transceiver≤500mW

Sensitivity

108-136MHz (AM)-106dBM SINAD 13db

136-180MHz(AM)-119dBM SINAD 13db

230-250MHz(AM)-116dBM SINAD 13db

350-400MHz(AM)-119dBM SINAD 12db

400-512MHz(AM)-119dBM SINAD 13db

700-985MHz(AM)-96dBM SINAD 13db

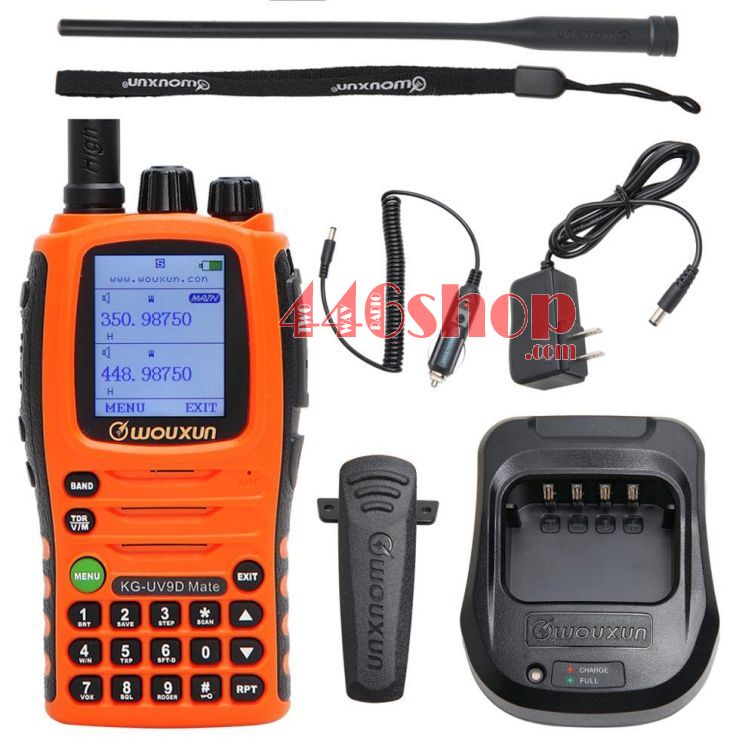

Package Contents:
1 x Wouxun KG-UV9D Mate Radio

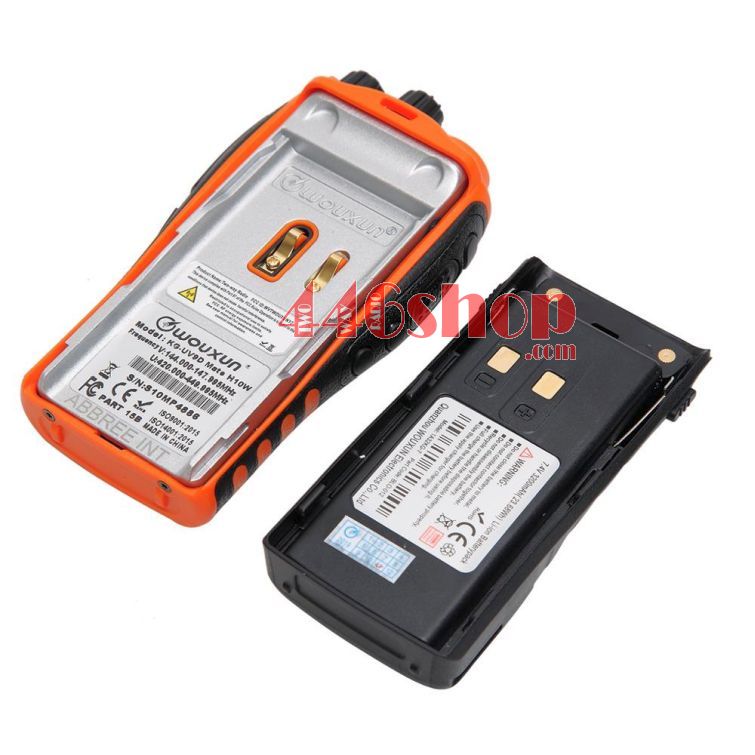

1 x 3200mAh Li-ion Battery

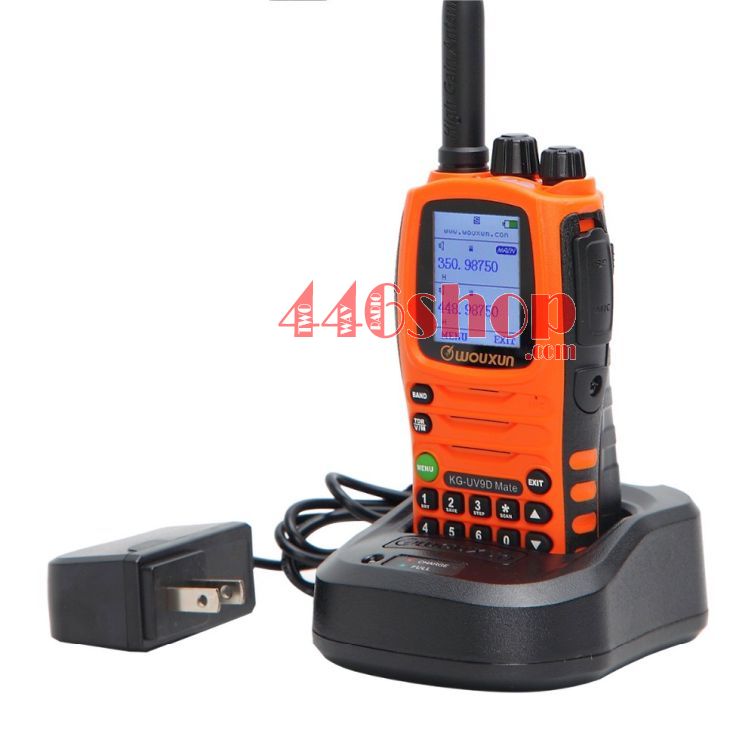

1 x Intelligent Charger
1 x Belt Clip
1 x SMA-Male Antenna
1 x Handstrap
1 x User's Manual

1 x Programming Cable

1 x Speaker Microphone

1 x Car Charger Cable Eliminator Line

1 x High Gain Antenna
