PS100 137.5MHz-2.7GHz UV RF Antenna Analyzer SWR Meter Tester

PS100 Antenna Analysis Measuring Instrument Standing Wave Meter Tester RF Vector Impedance Analyzer

Made of fine quality material, practical, easy to operate and use, wide application range, has a long service life.

Features:
Built-in high-capacity lithium-ion battery for mobile and outdoor use.
Shutdown automatically saves the setting parameters without manual intervention. After the next power-on, the interface settings are exactly the same as before the shutdown, and the use is very worry-free.2
Can be used to test the antenna, the impedance of the radio frequency devices.
The instrument has four interfaces: single point measurement, scan function, system information and calibration. The default power-on interface is single point measurement.

Specifications:
Material: Metal
Color: Black
Working frequency: 137.5MHz~2700MHz
Frequency stepping: 1KHz
Display: 2.4 inch TFT, resolution 320*240 (QVGA)
Battery: 1 * lithium battery, 2000mAh (included)
Power consumption: <1.5W
Charging current: 400mA
Charging interface: USB (for the time being only as a charging interface, data transmission is temporarily not open)
Automatic shut-down: can be set (always open, 5 minutes to 60 minutes optional)
Measurement parameter: resistance, reactance, standing wave, S11
Resolution: 4 significant figures
Frequency accuracy: <±3ppm
Connector: SMA-K
Measuring range:
Impedance: 0.1Ω~1000Ω (absolute value impedance)
Standing wave: 1.000~65
S11 (dB): 0dB~-60dB
Error (single point measurement):
Impedance: < impedance absolute value × 5% ± 0.1 Ω (Z is less than 200 Ω, < 1.5 GHz)
Standing wave: < effective reading × 10% ± 0.1
S11 (dB/°): 0.1dB / 5°(0dB~-10dB), 1dB / 10°(-10dB~-20dB), 5dB / 20°(-20dB~-40dB)
Directionality: < 35dB (140MHz~2GHz after calibration), < 30dB (2GHz~2.7GHz)
Scan points: 280
Output level: -18dBm
Operating temperature: 0℃~40℃
Atmospheric pressure: 860hPa~1060hPa
Item size: 98 * 83 * 28mm / 3.9 * 3.3 * 1.1in (without protrusions)
Item weight: 248g / 8.7ounce
Package size: 150 * 102 * 37mm / 5.9 * 4.0 * 1.5in
Package weight: 293g / 10.3ounce

Note: as RF impedance measuring needs calibration, so you need to purchase separately calibration kit.

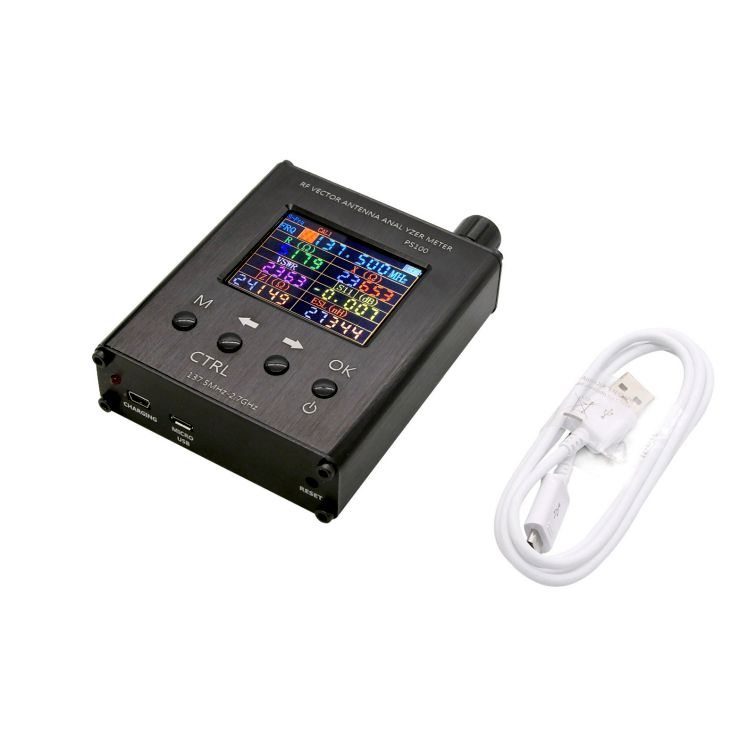

Package list:
1 * Vector Impedance Analyzer
1 * USB Cable
