VGC VR-P25U Amplifier for UHF 400-470 20-40W Output 2-6W Input Analog DMR Modes Walkie Talkie Tow way Radio

Bullet point:

VR-P25U is a lightweight portable handheld RF amplifier. With the preamplifier you can easily extend the communication range of the handheld radio.

Use the preamp to create: a mobile device with a vehicle-mounted antenna, a high-performance field radio with a field-installed antenna, a radio with a base station on a mast. Your handheld radio connects in seconds and can just as easily be disconnected and taken along the way.

High output power up to 40 watts: with an input power of 2-6 watts, up to 40 watts of output power can be achieved.

Suitable for FDMA mode (C4FM, D-Star, NXDN, IDAS, dPMR, P25, MPT1327, etc). Supports analogue handheld radios, e.g. Baofeng, Radioddity, Kenwood, Yaesu, ICOM, Motorola analog radios.

Certifications: All VGC amplifiers have been certified by CE, FCC. FCC ID: ZVM-VR-P25U. CE ID: MOST18EE040578

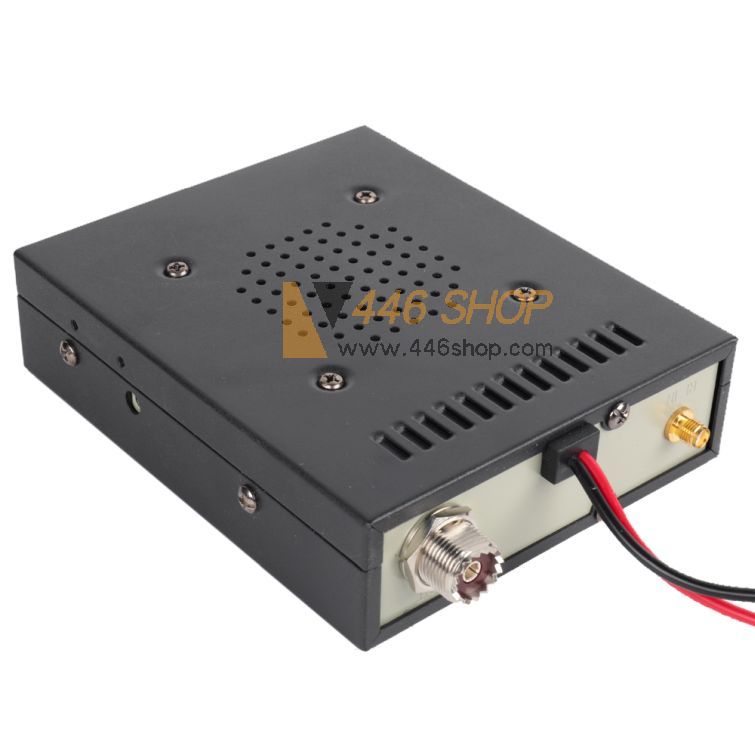

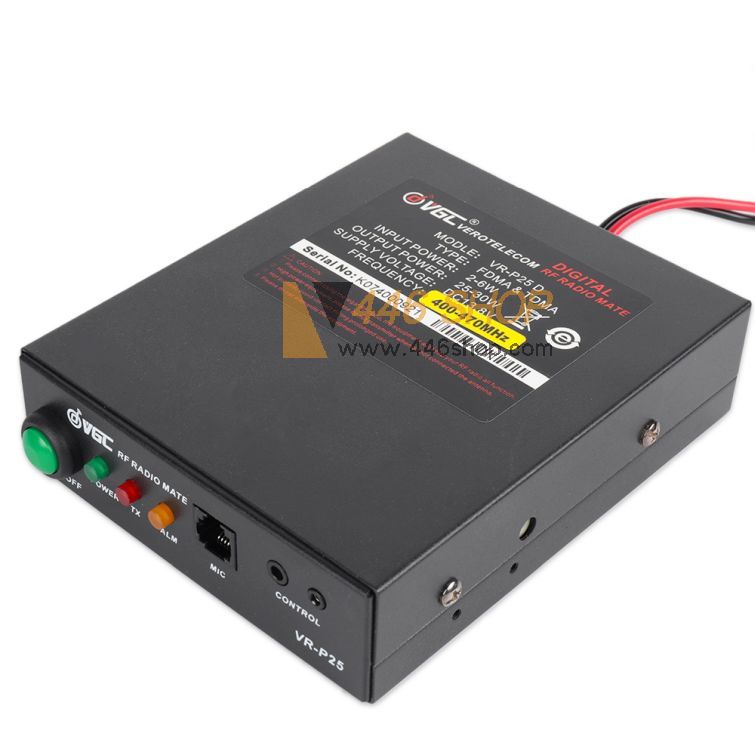

VR-P25U is a lightweight portable handheld RF amplifier.

Features:

Automatic switching

VR-P25UD is suitable for FDMA mode (C4FM, D-Star, NXDN, IDAS, dPMR, P25, MPT1327, etc.)

High output power up to 40 watts with an input power of a handheld radio of 2-6 watts can be achieved up to 40 watts output power.

UHF band: The amplifier VR-P25U / UD can support UHF (400-470MHz)

small design at a size of 35 * 115 * 135cm it is particularly suitable for outdoor use such as Fielddays or for mounting in the car

Certifications: All VGC amplifiers have been certified by CE, FCC.

Multi-functional: Includes voltage stabilizer, overheating protection, RF sensing, auto power off, harmonic filters.

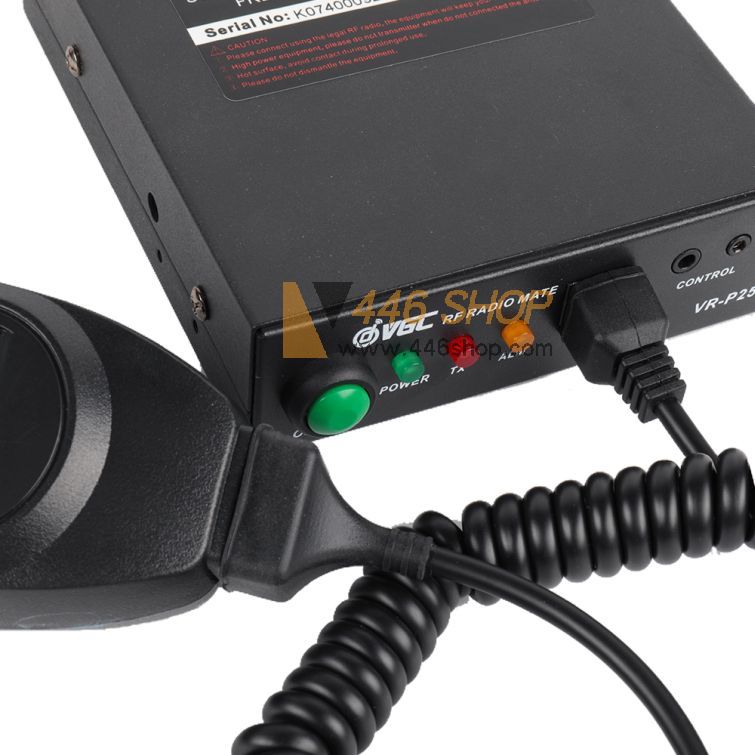

Integrated speakers and microphone connection

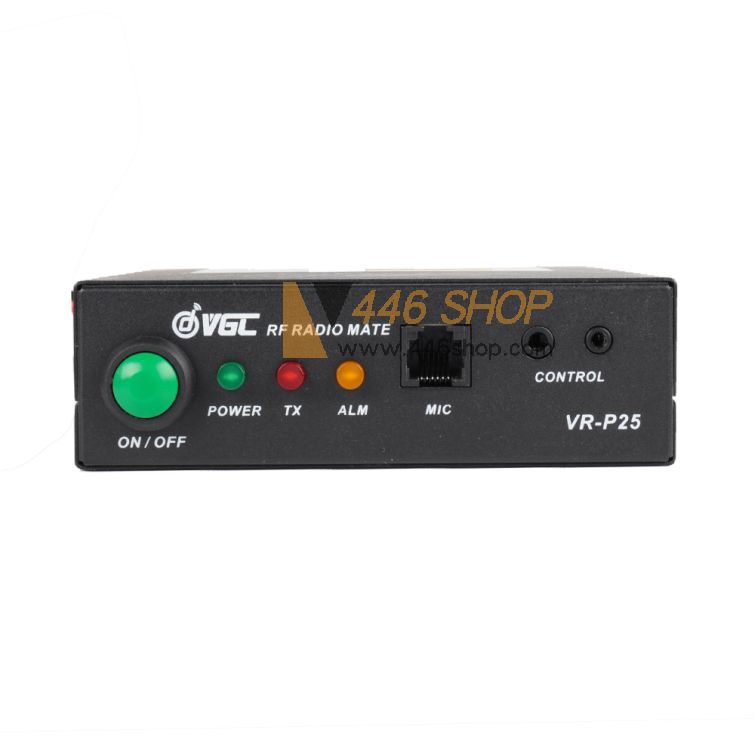

Status display about the current operating state

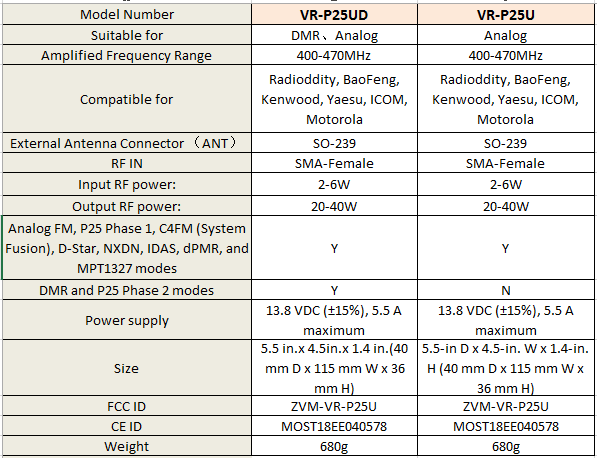

Specifications:

Frequency range: 400-470MHz

Power supply: 13.8 VDC (± 15%), 5.5 A maximum

Input RF power: 2 - 6W (± 10%)

Output RF power: 20 - 40W

Size: 5.5 in D x 4.5 in. W x 1.4 in. H (135 mm D x 115 mm W x 36 mm H)

Dead weight: 1.5 lbs. (680 g)
